ZHCS2000TA
Manufacturer:
Diodes Incorporated
Mfr.Part #:
ZHCS2000TA
Datasheet:
Description:

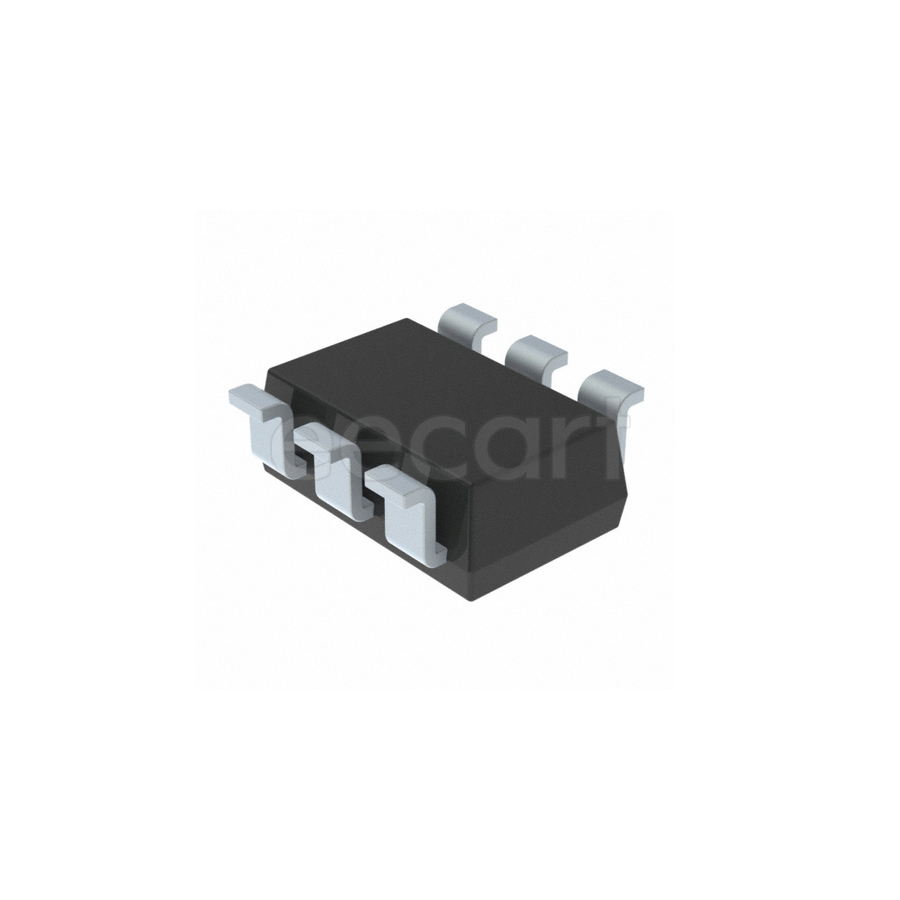

Schottky Diodes SOT-26 SMD/SMT Single Dual Anode Dual Cathode Forward Current:2 A Forward Voltage:615 mV Max Repetitive Reverse Voltage (Vrrm):40 V Max Forward Surge Current (Ifsm):20 A
| Parameter | Value |
|---|---|
| Element Configuration | Single Dual Anode Dual Cathode |
| Packaging | Reel |
| Forward Current | 2 A |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Reverse Current | 300 µA |
| Forward Voltage | 615 mV |
| RoHS | Compliant |
| Forward Surge Current (Ifsm) | 20 A |
| Max Repetitive Reverse Voltage (Vrrm) | 40 V |
Stock: 23824
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.26674 | $2.66740 |
| 25 | $0.24372 | $6.09300 |
| 50 | $0.22269 | $11.13450 |
| 100 | $0.20347 | $20.34700 |
| 300 | $0.18652 | $55.95600 |
| 500 | $0.17099 | $85.49500 |
| 1000 | $0.16671 | $166.71000 |
| 3000 | $0.14876 | $446.28000 |
| 5000 | $0.14617 | $730.85000 |
| 10000 | $0.14363 | $1436.30000 |
